Bastion Architecture on AWS using Terraform

Table of Contents

Introduction

In this article, we will discuss what a Bastion architecture is, the challenges it solves, and we will have fun implementing it on AWS using Terraform.

We will also see how to have a backup in case of loss of the Bastion host, using AWS Session Manager.

This article is made to be light and fun. It will be enough to introduce you to secure cloud architectures.

This article contains an intermediate-level lab, we assume that you have knowledge of AWS (VPC, EC2, Subnets..) and Terraform, and are comfortable with SSH.

Pre-requisites

Before we dive into the main subject, please make sure you have the required tools for this lab.

  • AWS account and Access Keys
  • AWS CLI
  • Terraform
  • SSH CLI and SSH keypair

Challanges

In a cloud environment, securing resources is the most crucial part of building architectures. Imagine working in a multi-billion company and having an EC2 instance hacked and secret data used. T he company’s stocks will instantly crash, starting a crisis and probably putting an end to this latter.

Now that we have a real impact of what an insecure cloud architecture would make to a company, let’s take it into a smaller context.

Say you have a personal AWS VPC, with 3 EC2 instances. The instances are in a public subnet, you access them using SSH (via public internet) to make development and maintenance operations.

One day, you started to observe intrusion attempts made by strange sources. So you decide to put these instances in a private subnet that’s not accessible from the outside world. Now your EC2 instances are perfectly secure, but… How would you access them? You lost your access.

Here comes the role of a Bastion host.

A Bastion host is a specially configured server designed to act as a gateway between an untrusted network, in our case the internet, and a private trusted network, in our case AWS private subnets.

Key features

Bastion’s key features are:

  • Single Entry Point: channels all external traffic through its secure gateway.
  • Hardened Security: minimal services installed to reduce vulnerabilities, including firewalls, intrusion detection softwares, and authentication systems.
  • Access Control: It verifies and limits access to authorized users.
  • Audit and Monitoring: Logs and monitors incoming and outgoing traffic.

Architecture

Let’s discuss the architecture component by component

  • 1 VPC main-vpc
  • 1 private subnet with the CIDR 192.168.1.15 private-instances-subnet
  • 3 EC2 instances private{001,002,003} in the subnet private-instances-subnet
  • 1 public subnet CIDR 192.168.1.16 bastions-subnet
  • 1 EC2 instance bastion001 in the subnet bastions-subnet
  • 1 Internet gateway main-igw
  • 1 NAT gateway main-nat-gateway
  • 1 Local desktop

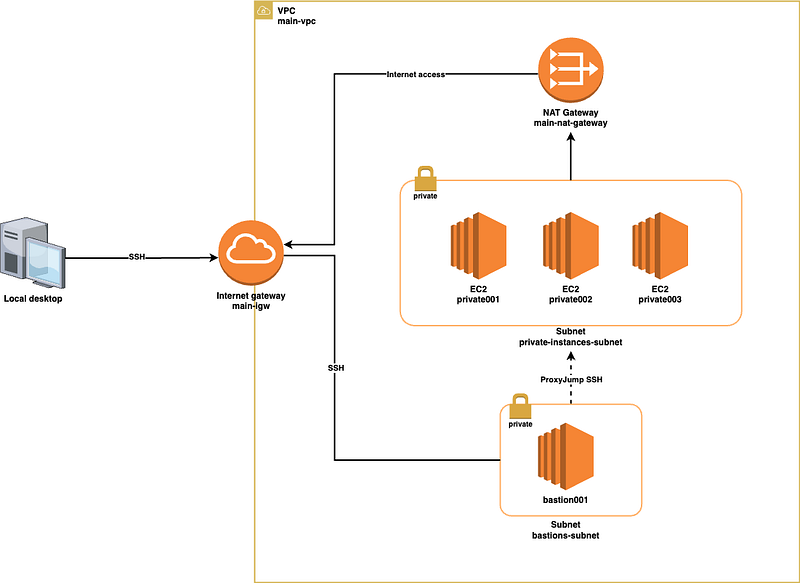

Architecture

Implementation

I’ve prepared for you all the necessary Terraform configuration and other resources, so we can focus on understanding them.

The code is located on GitHub aws-bastion-architecture.

Clone the repository

git clone [email protected]:rafikbahri/aws-bastion-architecture.git

The project structure is as follow

# --- Project Structure ---
bastion.tf # bastion configuration (subnet, instances, sg..)
main.tf # defines the provider (aws)
outputs.tf # terraform outputs (bastions public ips, private instances ips..)
private.tf # private instances configuration (subnet, instances, sg..)
ssh-config.tf # generate ssh config file located in .ssh/config
ssm.tf # aws session manager configuration (sg..)
variables.tf # global variables
vpc.tf # vpc configuration (subnets, sg, vpc, igw...)
[.config]
    └── cloudinit_user_data.yaml # contains you public ssh key
[modules] # custom terraform modules
    ├── [aws-node] # encapsulates an ec2 instnace/node configuration
        ├── README.md
        ├── main.tf
        ├── outputs.tf
        ├── variables.tf
        └── versions.tf
    ├── [aws-private-subnet] # encapsulates a private subnet configuration
        ├── README.md
        ├── main.tf
        ├── outputs.tf
        ├── variables.tf
        └── versions.tf
    ├── [aws-public-subnet] # encapsulates a public subnet configuration
        ├── README.md
        ├── main.tf
        ├── outputs.tf
        ├── variables.tf
        └── versions.tf
    ├── [aws-sg] # encapsulates a security group configuration
        ├── README.md
        ├── main.tf
        ├── outputs.tf
        ├── variables.tf
        └── versions.tf
    └── [aws-vpc] # encapsulates a vpc configuration
        ├── README.md
        ├── main.tf
        ├── outputs.tf
        ├── variables.tf
        └── versions.tf

We’ll explain the major important parts of the project, enjoy reading the code on your side and try to understand every little bit of it.

Let’s dive deep into the bastion.tf configuration file. In the first part, we define the bastions-subnet that uses a module to create an AWS public subnet inside the VPC we create using vpc.tf.

Then we define a group of instances, in our case var.bastion_servers_count is equal to 1. Check the variables.tf file for all the details on the values of the variables. We can scale the server count to 3, providing the private_ips which is a list of IPs inside the subnet, which has a CIDR of 192.168.15.0/24. The user_data_file is a crucial part of this configuration since it has our public SSH key. This file has a configuration Shell script that is run during the startup of the EC2 instances. You’ll need to override the value of SSH_PUBLIC_KEY inside the .config/cloudinit_user_data.yaml file with your own SSH public key. The bastion host has 2 security groups: module.sg-admin-bastions.sg_id, module.sg-admin.sg_id.

module "bastions-subnet" {
  source                         = "./modules/aws-public-subnet"
  name                           = "bastion-subnet"
  vpc_id                         = module.main-vpc.vpc_id
  availability_zone              = "eu-west-3a"
  cidr_block                     = var.bastions_subnet_cidr
  map_public_ip_on_launch        = true
  public_internet_route_table_id = module.main-vpc.public_internet_route_table_id
  has_internet_access            = true
  tags = {
    group = "bastions"
  }
}

module "bastions" {
  source          = "./modules/aws-node"
  server_count    = var.bastion_servers_count
  server_prefix   = "bastion"
  ami_id          = "ami-0546127e0cf2c6498"
  instance_type   = "t2.micro"
  vpc_id          = module.main-vpc.vpc_id
  subnet_id       = module.bastions-subnet.subnet_id
  private_ips     = [["192.168.15.11"], ["192.168.15.12"], ["192.168.15.13"]]
  create_key      = false
  security_groups = [module.sg-admin-bastions.sg_id, module.sg-admin.sg_id]
  user_data_file  = ".config/cloudinit_user_data.yaml"
  tags = {
    purpose     = "bastion"
    description = "Serves for SSH access"
    component   = "infra"
  }
}

Let’s understand the security groups.

module "sg-admin-bastions" {
  source      = "./modules/aws-sg"
  name        = "sg_admin_bastions"
  description = "Admin security group"
  vpc_id      = module.main-vpc.vpc_id
  ingress_rules = [
    {
      description = "SSH only from admin IP addresses."
      from_port   = 22
      to_port     = 22
      protocol    = "tcp"
      cidr_blocks = [
        "88.178.215.32/32" # My public IP address
      ]
      # Required attribues: https://stackoverflow.com/a/69080432/5684155
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = []
      self             = false
    },
    {
      description = "Ping inside VPC."
      from_port   = 0
      to_port     = 0
      protocol    = "icmp"
      cidr_blocks = ["192.168.0.0/16"]
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = []
      self             = false
    }
  ]
  egress_rules = [
    {
      description      = "Allow all outbound traffic."
      from_port        = 0
      to_port          = 0
      protocol         = "-1"
      cidr_blocks      = ["0.0.0.0/0"]
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = []
      self             = false
    }
  ]
}

module "sg-admin" {
  source      = "./modules/aws-sg"
  name        = "sg_admin"
  description = "Admin security group incoming only from bastions"
  vpc_id      = module.main-vpc.vpc_id
  ingress_rules = [
    {
      description = "SSH using EC2 instance connect (from AWS console)."
      from_port   = 22
      to_port     = 22
      protocol    = "tcp"
      cidr_blocks = [
        "35.180.112.80/29" # EC2 instance connect service IPs in my region https://ip-ranges.amazonaws.com/ip-ranges.json
      ]
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = [module.sg-admin-bastions.sg_id]
      self             = false
    },
    {
      description = "Ping inside VPC."
      from_port   = -1
      to_port     = -1
      protocol    = "icmp"
      cidr_blocks = ["192.168.0.0/16"]
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = []
      self             = false
    }
  ]
  egress_rules = [
    {
      description      = "Allow all outbound traffic."
      from_port        = 0
      to_port          = 0
      protocol         = "-1"
      cidr_blocks      = ["0.0.0.0/0"]
      ipv6_cidr_blocks = []
      prefix_list_ids  = []
      security_groups  = []
      self             = false
    }
  ]
}

sg-admin-bastions allows SSH access to the bastion host only from my public IP address. So you’ll need to change that value by your own public IP address.

sg-admin allows EC2 Instance Connect as a backup method in case we lose our SSH keys. (Totally optional but it’s a nice facility in this architecture)

Now let’s understand the private instances configuration

module "private-instances-subnet" {
  source              = "./modules/aws-private-subnet"
  name                = "private-instances-subnet"
  vpc_id              = module.main-vpc.vpc_id
  availability_zone   = "eu-west-3a"
  cidr_block          = var.private_instances_subnet_cidr
  public_subnet_id    = module.bastions-subnet.subnet_id
  has_internet_access = true
  tags = {
    kind = "private"
  }
}

module "private-instances" {
  source          = "./modules/aws-node"
  server_count    = var.private_instances_count
  server_prefix   = "private"
  ami_id          = "ami-0546127e0cf2c6498"
  instance_type   = "t2.micro"
  vpc_id          = module.main-vpc.vpc_id
  subnet_id       = module.private-instances-subnet.subnet_id
  private_ips     = [["192.168.16.11"], ["192.168.16.12"], ["192.168.16.13"]]
  create_key      = false
  security_groups = [module.sg-admin.sg_id]
  user_data_file  = ".config/cloudinit_user_data.yaml"
  tags = {
    kind = "private"
  }
}

This is a typical configuration, we define a subnet and a group of nodes/instances. We initialize the EC2 instances with the .config/cloudinit_user_data.yaml and we configure security groups to use module.sg-admin.sg_id so we only accept SSH from the Bastion host.

Lastly, before we attack the practical part, let’s talk about ssm.tf. This file configures AWS Session Manager for all of our EC2 instances.

Session Manager is a service that gives us access to EC2 instances without the need for SSH. It’s a great backup method if we lose our SSH keys or Bastion host. Initialize Terraform resources

terraform init

It’s a good practice to generate a Terraform plan and read it before applying the configuration. Let’s go ahead and run

terraform plan -out=tfplan

Once we are sure of our configuration, we can go ahead and apply it

terraform apply "tfplan"
ℹ️

This command will run the plan without asking for confirmation

Test

On your AWS Console, open EC2 > Instances (Running)

EC2 Running

We can see that only the bastion host bastion001 has a Public IPv4.
Test your SSH access to the Bastion host

ssh -F .ssh/config ec2-user@bastion001

Test your SSH access to a private instance

ssh -F .ssh/config ec2-user@private001

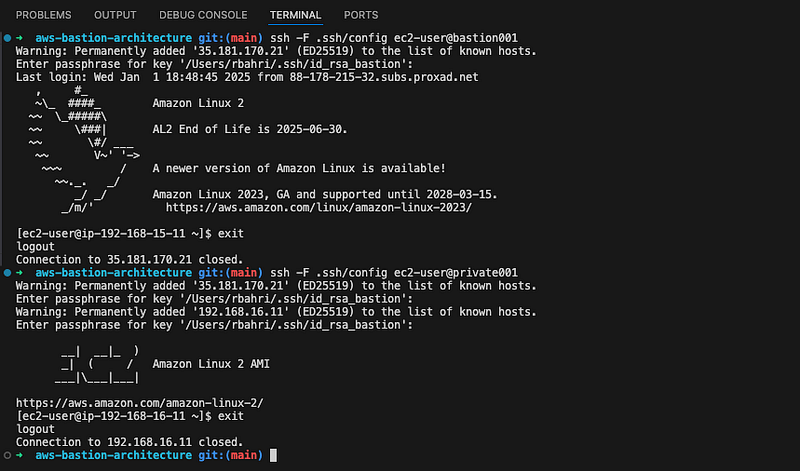

You should have a similar output to

SSH

Go ahead and test your access using AWS Session Manager as well.
To do so, choose an EC2 instance, then Connect > Session Manager

EC2 Connect

Then

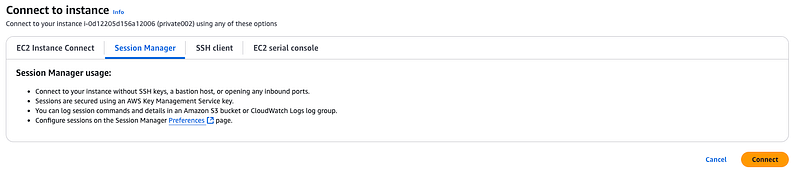

EC2 Connect SM

And

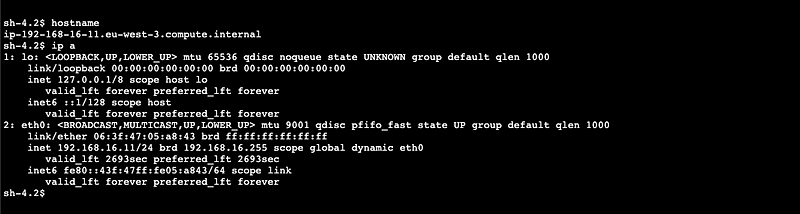

EC2 Session Manager

Conclusion

We understood what a Bastion host is, its challenges, and key features.

We also saw how to implement a typical Bastion host architecture on AWS and have a backup thanks to AWS Session Manager, all this using the famous Terraform.

I hope you enjoyed this article, feel free to give me your feedback and whether you want me to make similar articles on other Cloud architectures on AWS using Terraform.

Thanks a lot, see you in other tech articles!
